Single Truss Arch Storage Shelter W40'xL80'xH20' 11oz PE

Experience reliable, heavy-duty storage with our Single Truss Arch Storage Shelter (W40' × L80' × H20'), designed for commercial, industrial, and agricultural use. Built with a galvanized steel frame and supported by a single truss arch structure, this shelter delivers excellent strength, stability, and long-term durability.

The spacious interior provides ample clearance for equipment, vehicles, materials, or inventory, while the arch design allows for efficient water and snow shedding. Customers can choose from multiple fabric cover options, ranging from economical PE to premium heavy-duty PVC, allowing you to balance durability and budget.

With wide door openings, strong wind resistance, and a high snow load rating, this storage shelter is a dependable solution for year-round protection in demanding environments.

Specifications

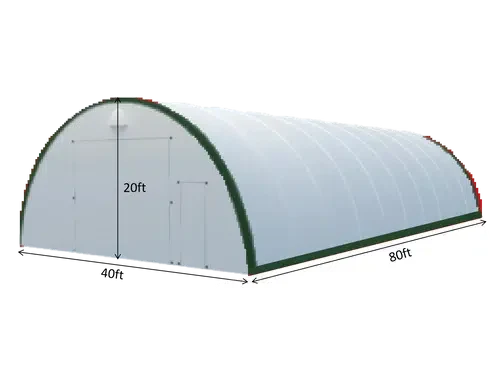

Overall Dimensions

• Width: 40 ft

• Length: 80 ft

• Height: 20 ft

Door Dimensions

• Main Door: 13.1 ft (W) × 14.8 ft (H)

• Side Door: 2.7 ft (W) × 6.3 ft (H)

Structural Design

• Arch Interval: 6.6 ft (2 m)

• Frame Type: Single truss arch

• Frame Material: Galvanized steel tubes

Steel Tube Specifications

• Truss Tubes: Ø86 × Ø56 × 2.0 mm

• Purlin Tubes: Ø48 × 1.5 mm

Performance Ratings

• Snow Load Rating:

  • 1.77 kPa / 37 lbs per sq. ft

• Maximum Wind Speed:

  • 50 mph

Fabric Cover Options

• 300g (11oz) PE

• 450g (16oz) PVC

• 650g (23oz) PVC

• 750g (26oz) PVC

• 900g (32oz) PVC

Color

• White cover with green edges
