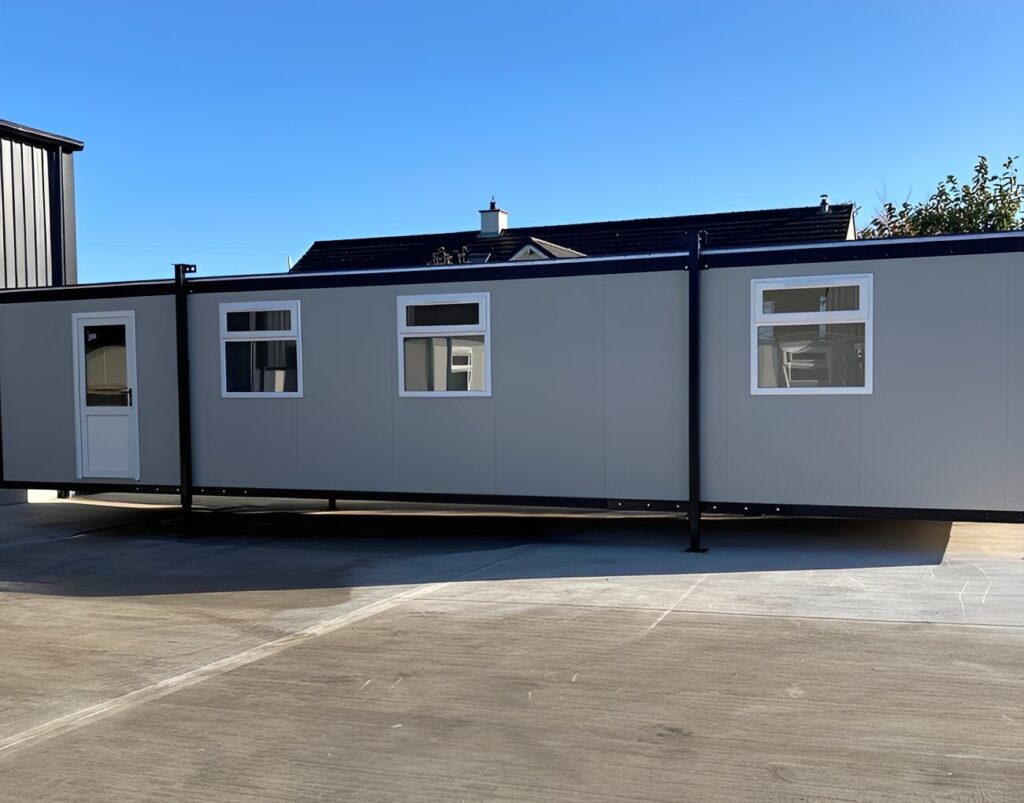

40ft x 10ft Jackleg Office Cabin with Toilet & Kitchenette – Premium Portable Workspace
The 40ft x 10ft Jackleg Office Cabin with Toilet & Kitchenette is a top-rated, fully equipped portable building solution ideal for construction sites, project offices, or remote work environments.
This spacious unit combines modern comfort, robust construction, and functional design—delivering a professional workspace that is weather-resistant, secure, and move-in ready.
Designed for long-term durability, it features a premium plastisol-coated steel exterior, full insulation, and a fitted kitchenette and toilet, ensuring convenience and comfort wherever your operations are based.
Key Features
Exterior Durability
-

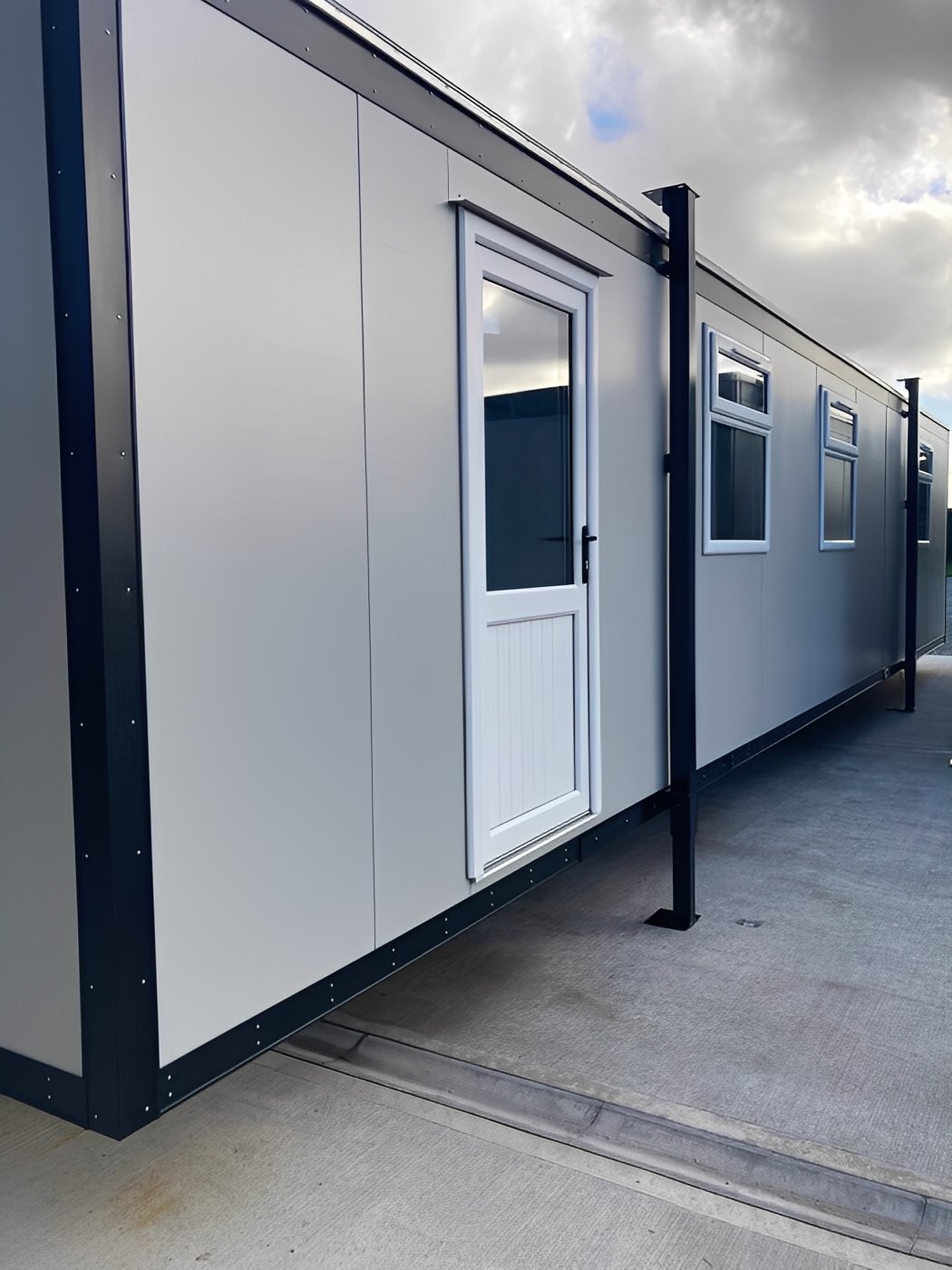

Plastisol Finish: Constructed with a 9 mm Far Eastern plywood base laminated with plastic-coated steel sheets for an attractive, weather-resistant, and low-maintenance exterior.
(Optional textured painted finish available on request.)
-

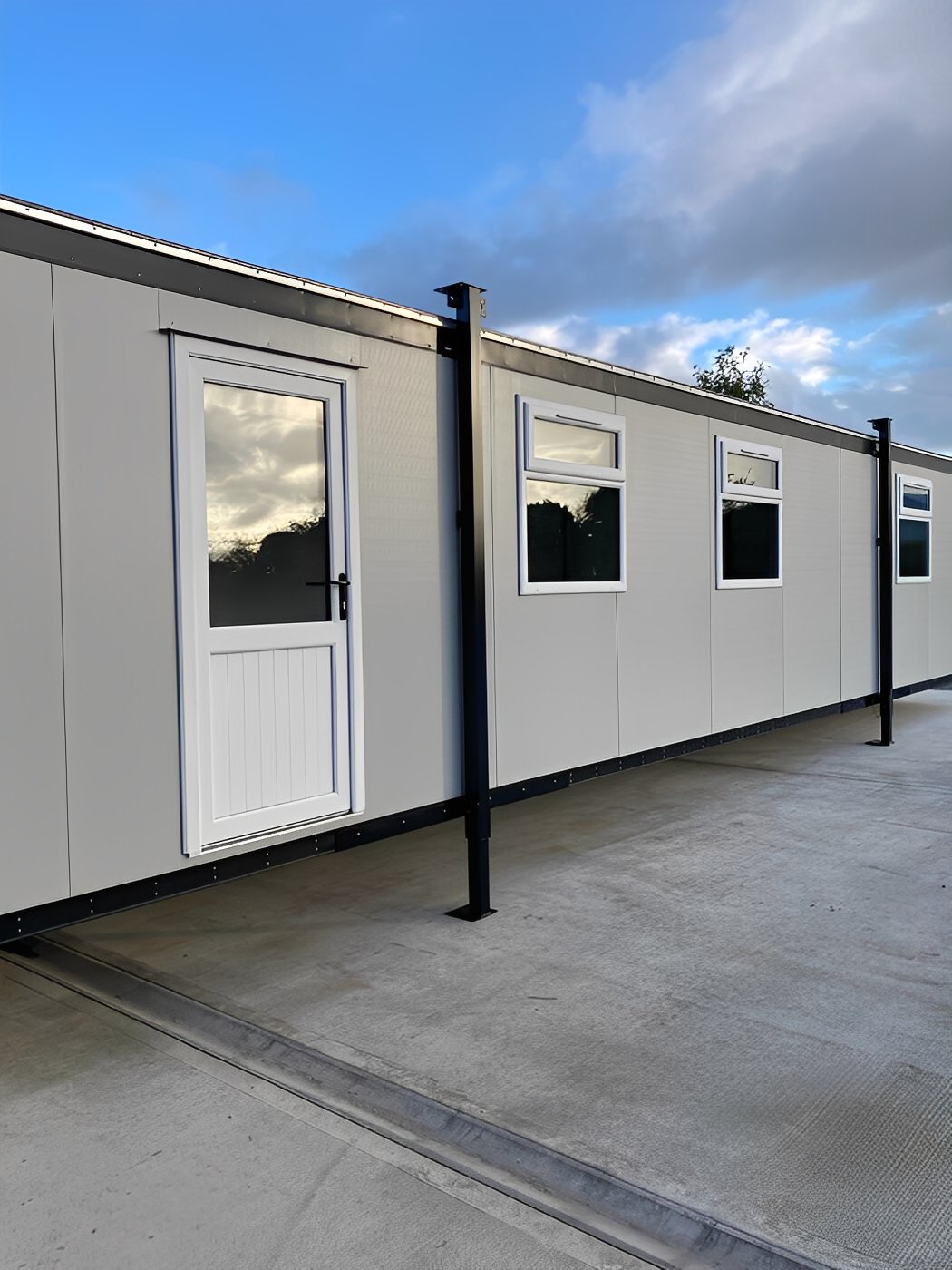

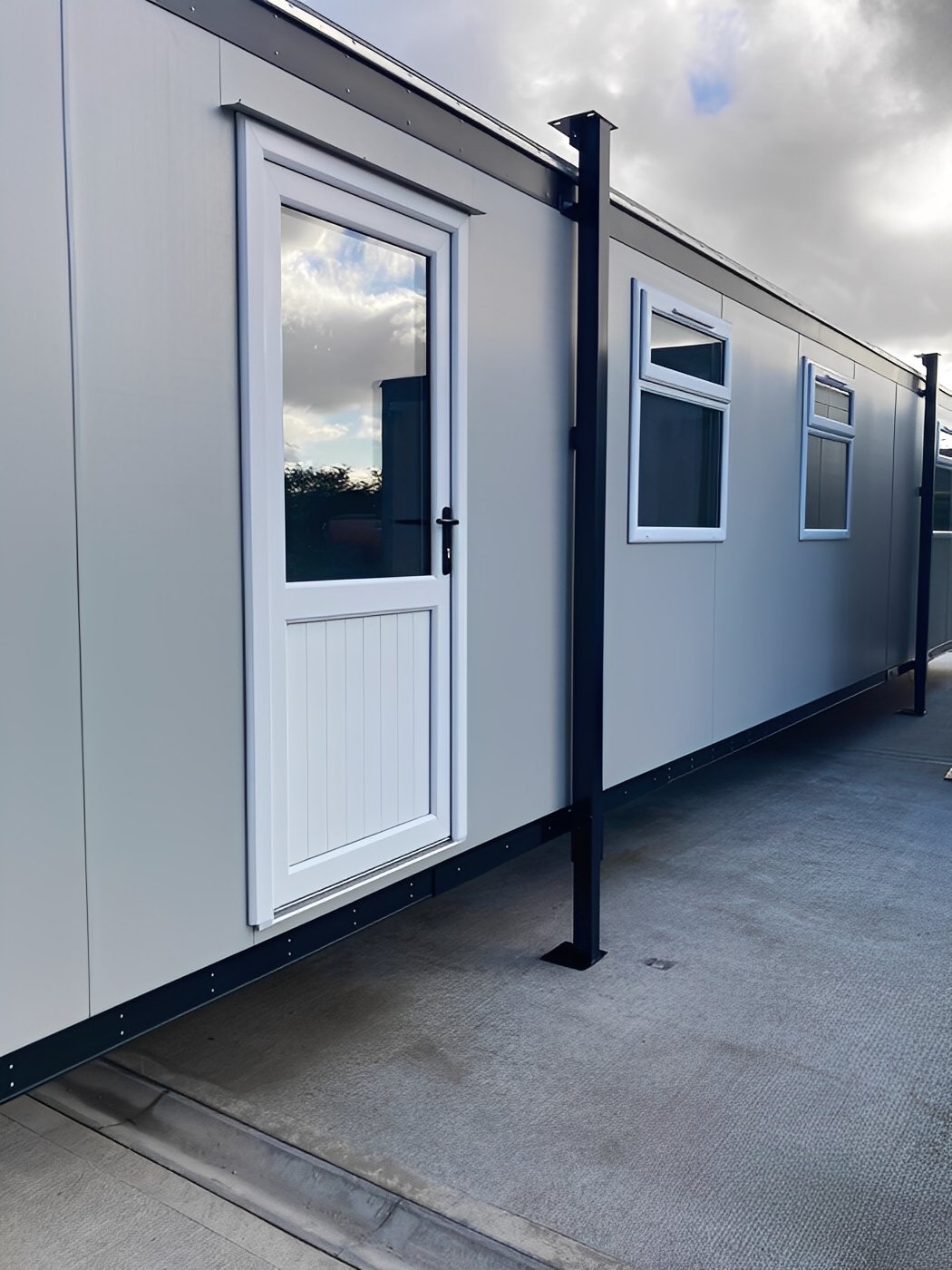

Fixed Jack-Legs: Provide superior stability and allow for quick, level installation on uneven ground.
-
Color Options: Choose from a range of colors to suit your branding or site aesthetics.
-
Security Features: Optional steel pedestrian door, uPVC double-glazed windows, and security mesh or steel shutter packs available for enhanced safety.
Interior Comfort & Functionality
-

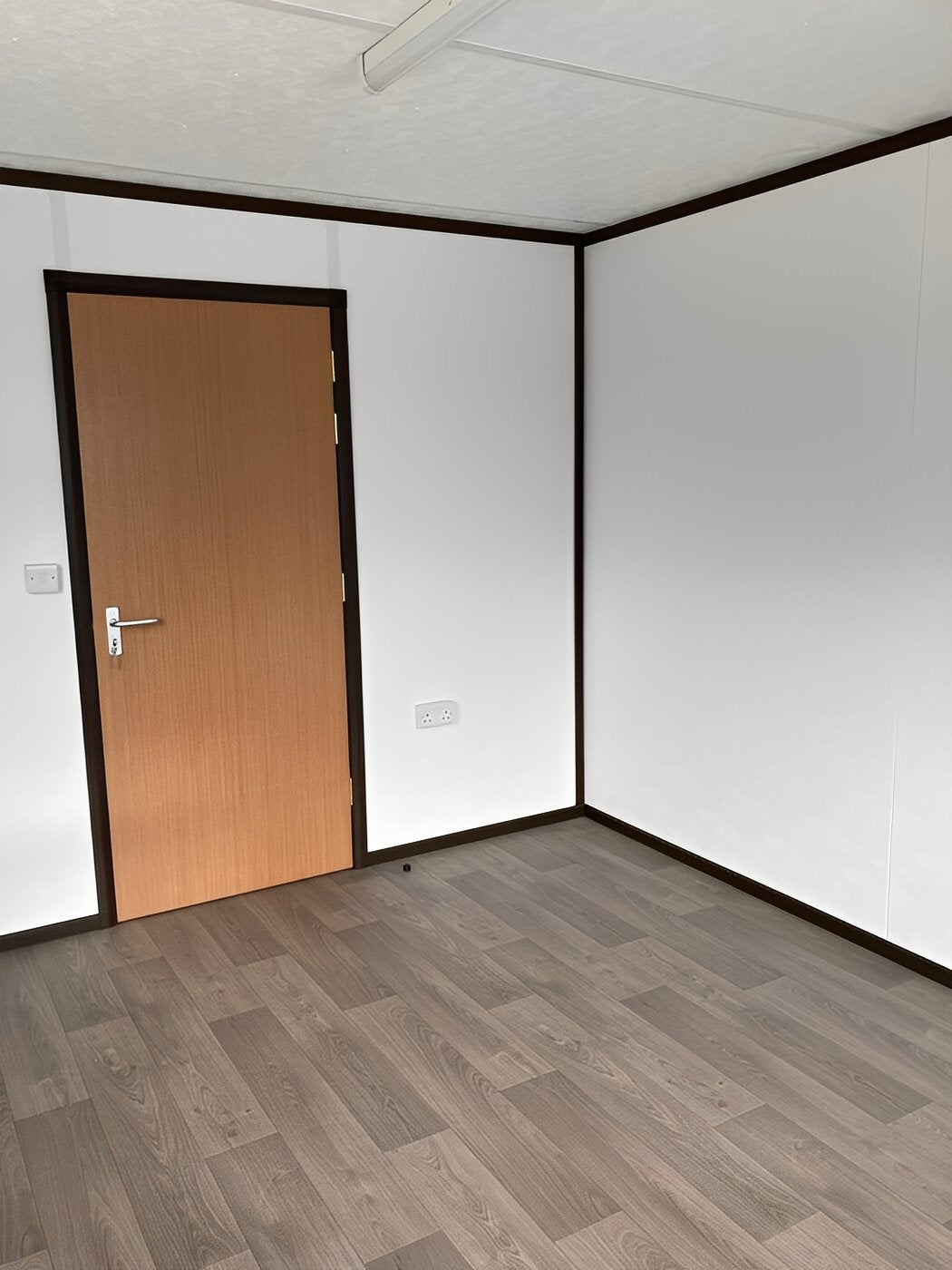

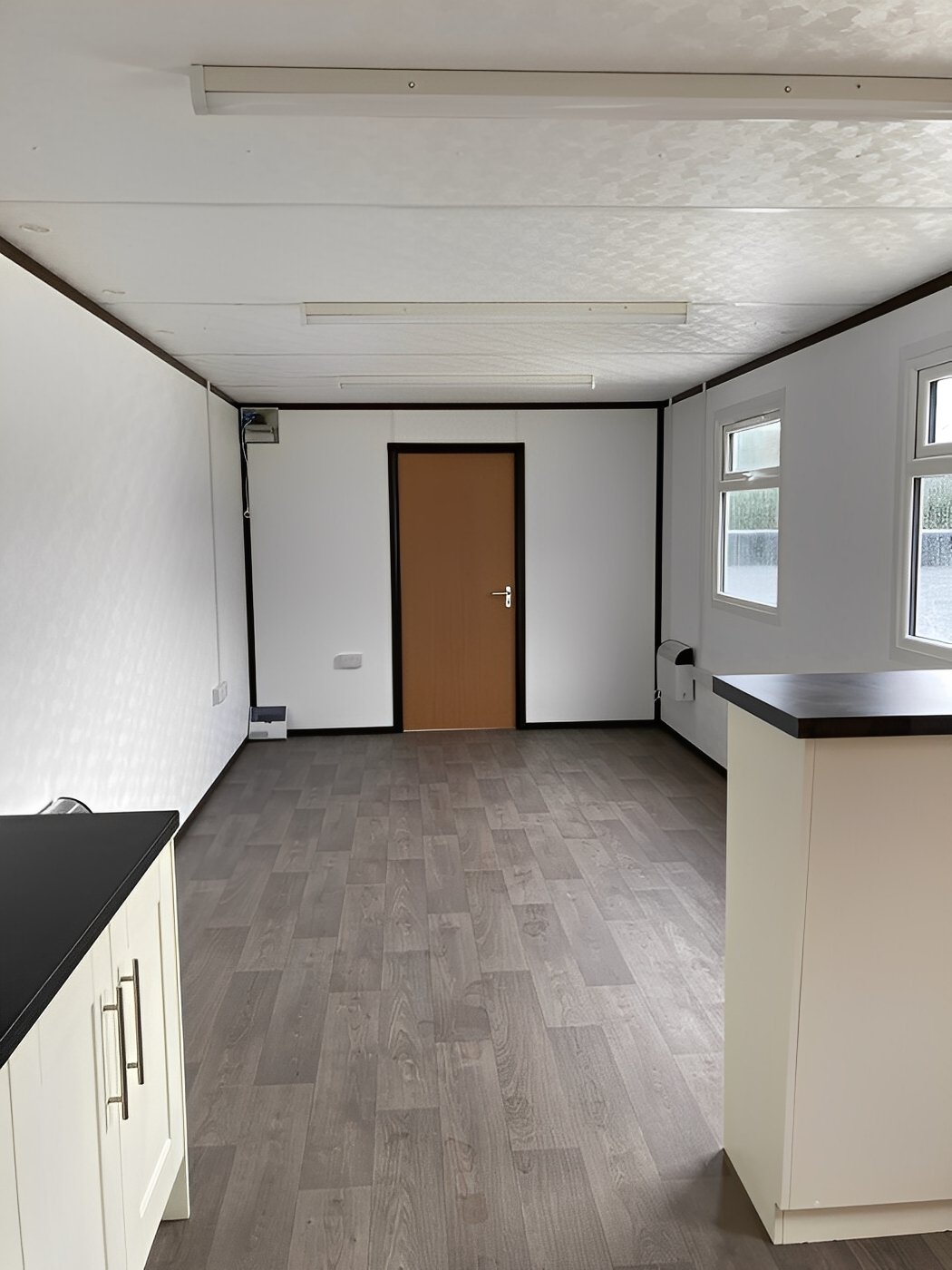

Spacious Open-Plan Layout: Designed for flexible use as an office, staff room, or meeting space.
-

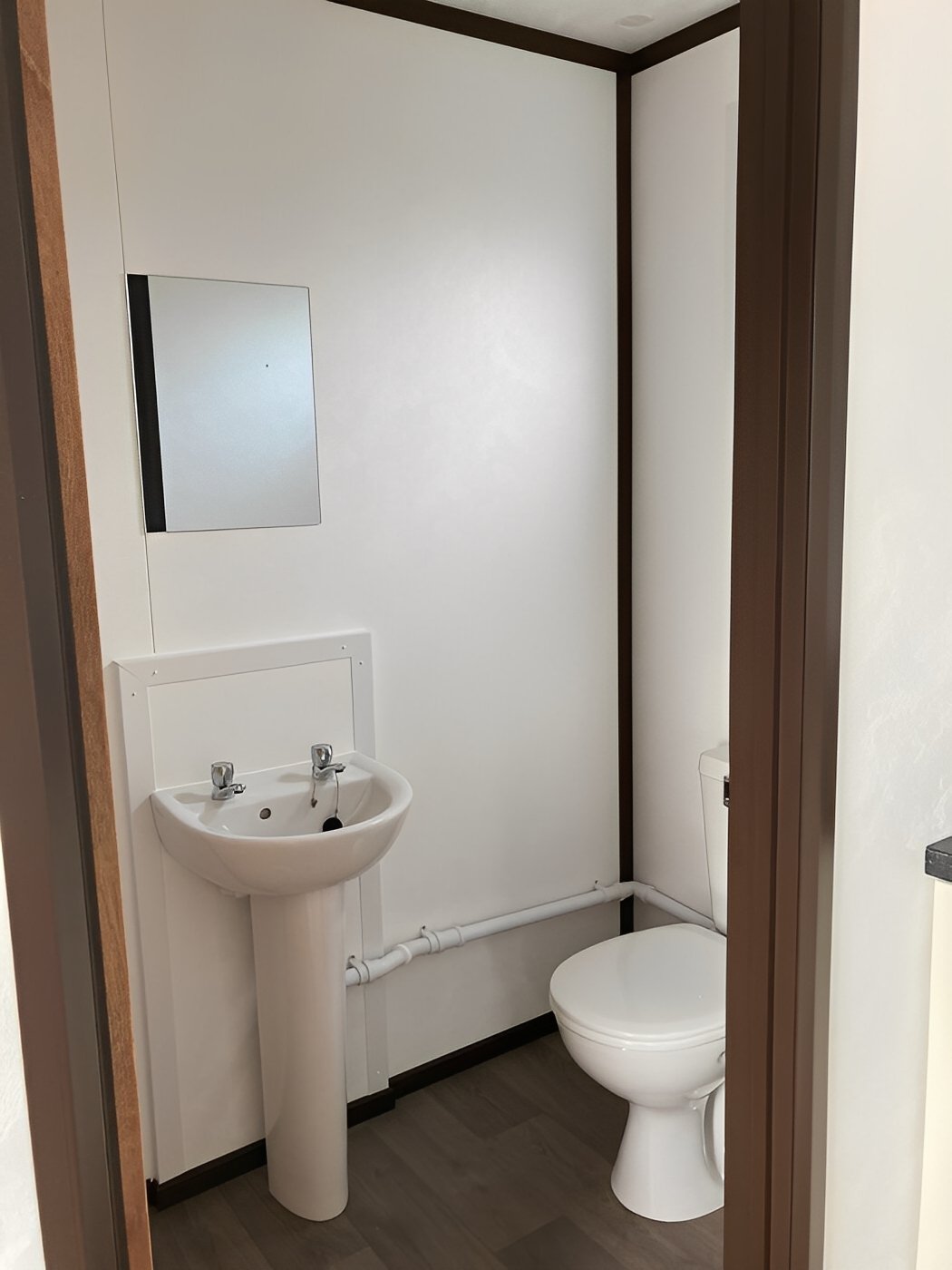

Integrated Toilet: Fully partitioned restroom area with toilet, sink, tap, and water heater pre-installed for convenience.
-

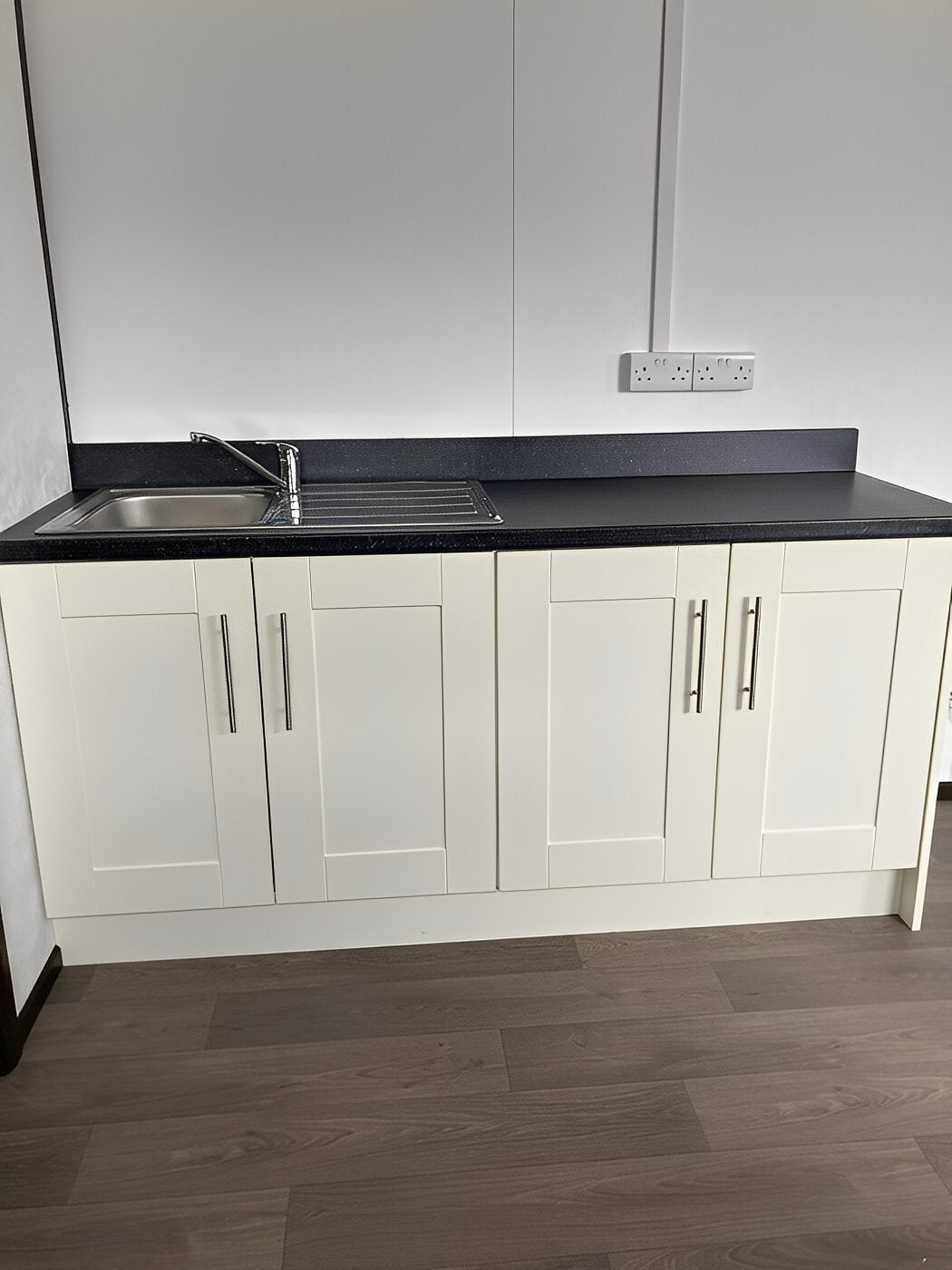

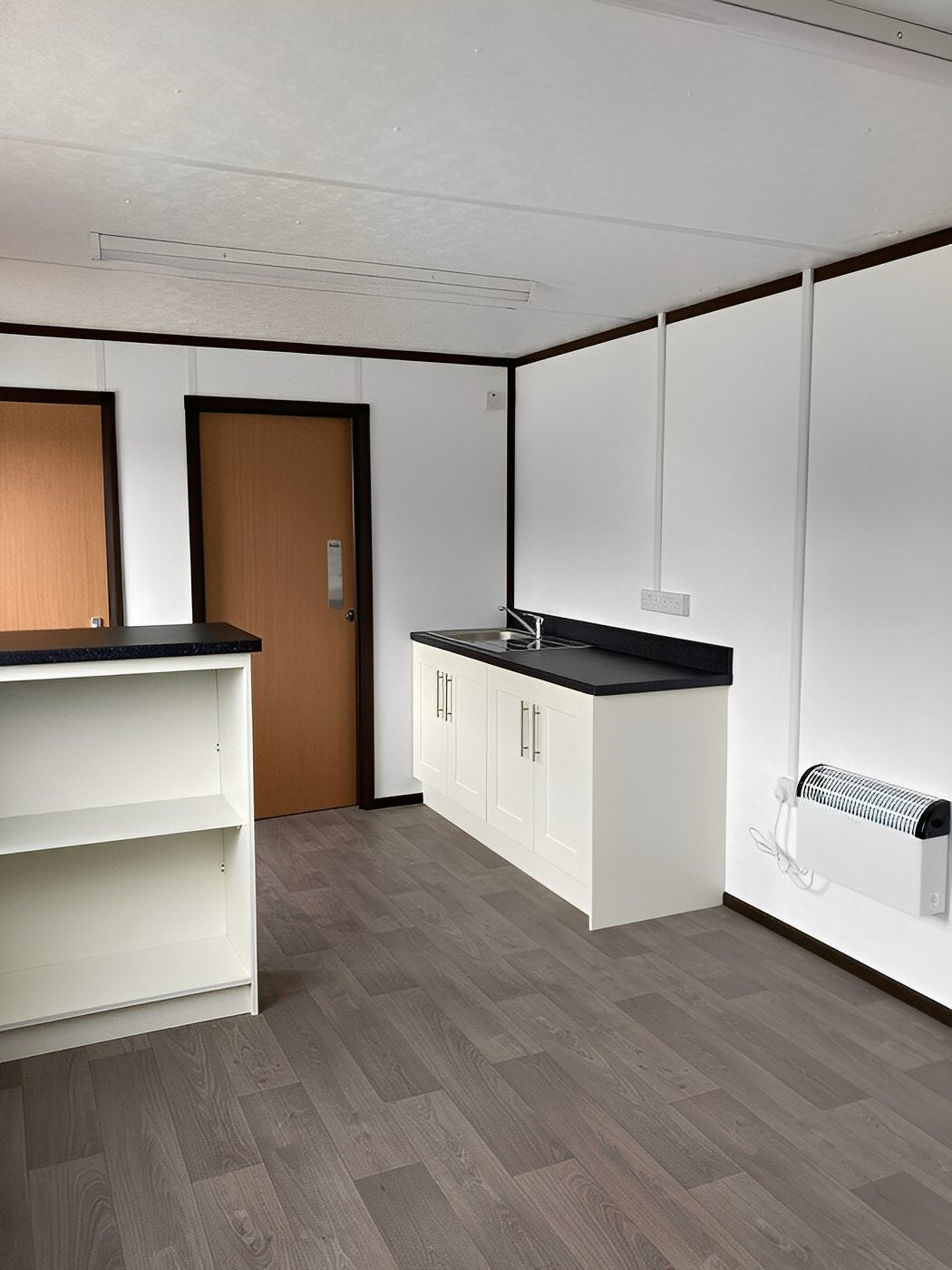

Fitted Kitchenette: Compact kitchen space featuring base cabinet, stainless-steel sink, mixer tap, water heater, and countertop workspace.
-
Insulation: Fully insulated walls, ceiling, and floor ensure comfort in all seasons.
-
Heating & Cooling:
- 3 × Electric timed panel heaters for consistent warmth.
- Optional split air-conditioning system available for year-round climate control.
-
Lighting: 4 × fluorescent strip lights + LED upgrades for bright, energy-efficient illumination.
-
Flooring: Sealed 2 mm commercial-grade vinyl flooring—durable and easy to clean.
-
Walls & Ceiling: Vinyl-faced plasterboard panels—smooth, insulated, and low-maintenance.
-
Windows: 6 × aluminum or uPVC double-glazed windows provide natural light and ventilation.
-
Power: 4 × double power points and 6 × twin 13 A sockets for office equipment and appliances.
Product Specifications
| Specification |
Details |
| External Length |
40 ft (12.19 m) |
| External Width (excl. jacks) |
10 ft (3.05 m) |
| External Width (incl. jacks) |
10.5 ft (3.18 m) |
| External Height |
9 ft (2.75 m) |
| Internal Length |
39.37 ft (12.00 m) |
| Internal Width |
9.34 ft (2.85 m) |
| Internal Height |
7.33 ft (2.23 m) |
| Doors |
Steel Security Door (2.66 ft W × 6.8 ft H) |
| Windows |
6 × uPVC Double-Glazed |
| Floor Type |
18 mm Particle Board |
| Floor Covering |
2 mm Vinyl |
| Wall Covering |
Vinyl-Faced Plasterboard |
| Weight |
9260 lbs (4200 kg) |
| Electrical Supply |
32 A / 240 V single-phase connection |
| Amenities |
Toilet + Kitchenette (Sink, Heater, Tap, Countertop) |
| Delivery |
Nationwide Delivery Available |
Applications
- Construction or site management office
- Marketing or sales suite
- Project operations or welfare unit
- Temporary or remote administration hub
- Modular office for business expansion
Benefits
-
All-in-One Solution: Includes toilet, kitchenette, heating, lighting, and power—ready to use on delivery.
-
Comfortable & Efficient: Insulated, bright, and climate-controlled workspace.
-
Durable & Secure: Anti-vandal construction with weather-resistant exterior.
-
Flexible & Portable: Easy to install, relocate, or combine with other modular units.
-
Professional Finish: High-quality interiors suitable for client meetings or long-term use.
Why Choose the 40ft × 10ft Jackleg Office Cabin with Toilet & Kitchenette?
This fully equipped portable office delivers the perfect balance of comfort, functionality, and security.
With its integrated kitchenette and restroom, it’s a complete workspace solution built to perform in demanding environments offering the same comfort as a permanent office, but with the mobility and efficiency of a modular unit.
